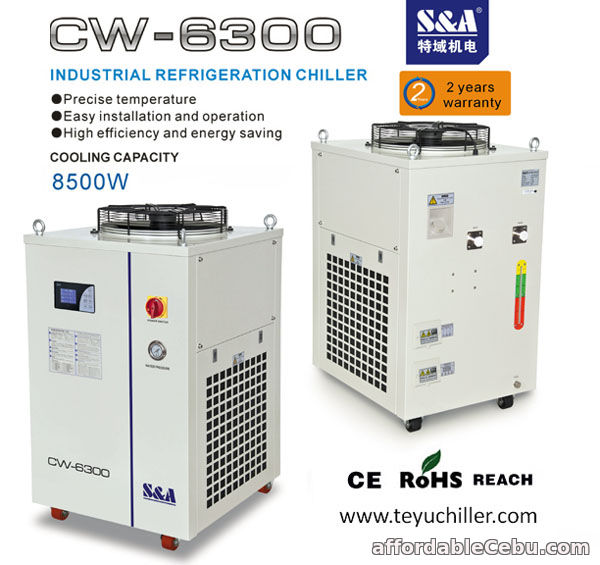

S&A water chiller for led lighting machine 220V/380V 60Hz/50Hz
S&A CW-6300 series is high-precision compression refrigeration water chiller,with intelligent temperature control,completed configuration,perfect protection and alarm system.It is for cooling led lighting machine.
S&A industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature. With that 1 key solution, customers no longer need to worry about the water temperature adjustment of seasonal changes.
1. 8500W cooling capacity; optional environmental refrigerant;
2.±1℃ precisely temperature control;
3.The intelligent temperature controller has 2 control modes, applicable to different applied occasions;
with various setting and display functions;
4.Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection,
water flow alarm and over high / low temperature alarm;
5.Multiple power specifications; CE approval; RoHS approval;
6. Long working life and simple operation;
7.Optional heater and water filter.
One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically switch to appropriate operating temperature.
CW-6300AN: applied to cool a single 300W YAG laser, a single 300W CO2 RF laser tube or a single 300W laser diode.
Optional: CW-6302 dual water inlet and outlet series; heat booster; water filter.
Voltage: AC 1P 220V/AC 3P 380V; Frequency: 50/60Hz; Refrigerant: R-22 / R-410a
Pump power: 0.37-1.1KW; Tank capacity:45L
Max. lift:38-53M; Max. flow: 70-116L/min
N.W: 150Kgs; G.W: 163Kgs;
Dimension : 83 X 65 X 117cm (L X W X H); Packing dimension: 95 X 85 X 140cm(L X W X H)
About S&A Brand
S&A produces more than 60000 units of industrial chillers by year,we always insist on”Quality First” in design and production.
“S&A” and “TEYU” have been enjoying high reputation among hundreds of manufacturers which are from both at home and abroad,and export rate reaches above 60%.
