S&A chiller for water cooled electro spindles of small milling machines
A customer from Russia buys S&A chiller CW-5000 to cool water cooled electro spindles of small milling machines.

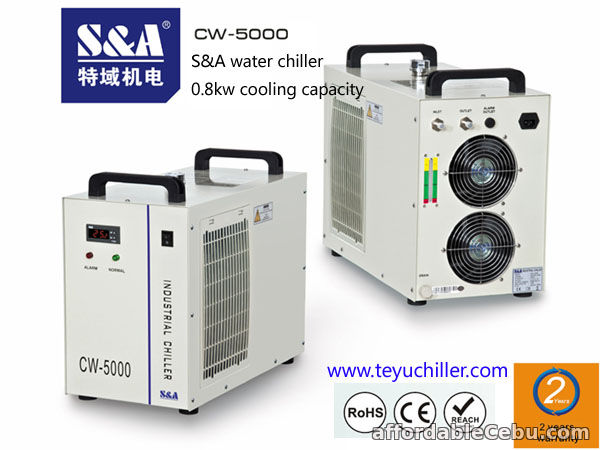

S&A CW-5000 compact chiller with long working life and simple operation has high precision temperature control in spindle systems. S&A chillers support multiple power specification and have passed CE, RoHS and REACH approval. S&A chiller’s warranty is 2 years.
S&A CW-5000 is refrigeration type industrial water chiller of 800W cooling capacity and the temperature control in ±0.3℃ precision. It’s mainly used to have the heat generated during the laser device working that gone through the refrigerating cycle in compressor refrigeration system and eventually transferred to the air. The water temperature is able to be adjusted.
CW-5000 video: http://www.teyuchiller.com/Article/02SAwaterchillerCW5000_1.html
CW-5000 water chiller parameter:
Voltage:110V-220V; Frequency: 50/60Hz; Refrigerant: R-134a
Pump power: 0.03KW/0.051KW/0.1KW; Tank capacity:6L
Max. lift:10M-25M; Max. flow: 10L/min- 16L/min
N.W: 24Kgs; G.W: 27Kgs; Dimension : 58 X 29 X 47 cm (L X W X H); Packing dimension: 70 X 43 X 58 cm (L X W X H)
About S&A Brand
S&A(TEYU) was founded in 2002. After 15 years of development, the headquarter covers an area of 15,000 square meters, and has about 220 employees. With annual production capacity for cooling system up to 60,000 units, the product has been sold to more than 50 countries and regions. With its excellent quality and leading R&D strength, TEYU has become a leading enterprise in domestic industrial refrigeration industry. The shipment of TEYU laser cooling system is World No.1 in 2016.
