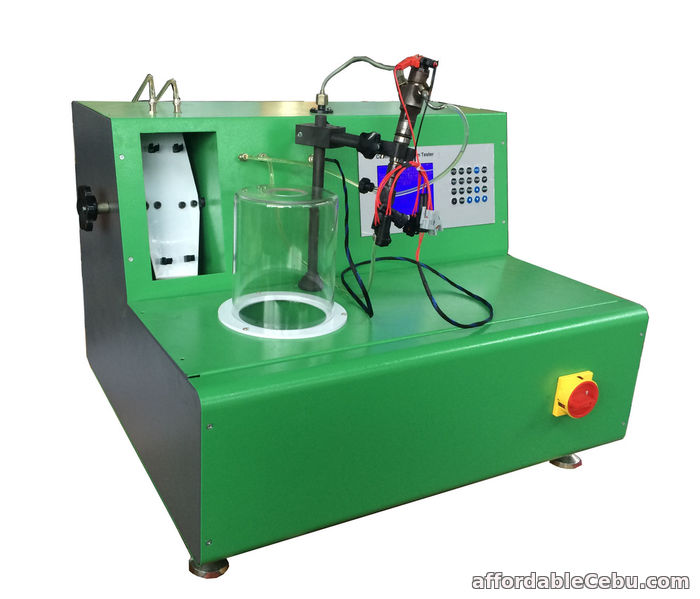

common rail injector test bench eps100:

NTS100 Test bench is our latest Independence researched special device to test the performance of high-pressure common rail injector, controlled by industrial computer, Windows operating system.
The oil quantity is measured by sensor and displayed on computer screen(Electronic fuel delivery system). All data can be searched and saved.
It adopts  original CP3 common rail pump to provide 0~1600 bar for rail pressure(DENSO).

The rail pressure can be adjusted automatically,and it also provide pressure overload protect.

It can test common rail injector of all brands.
Advanced technology, steady performance, precise measurement and convenient operation.



Features of common rail injector test bench eps100:

1. Controlled by industrial computer in real time, Windows operating system.

2. Oil quantity is measured by sensor and displayed on 10.4" tactile  LCD screen;

3. More than 700 kinds of injecotors data can be searched and used.

4. It is installed BOSCH common rail pump to provide 0~2000 bar.

5. Rail pressure can be tested in real time.

6. Provide pressure overload protect.

7. Pulse and frequency of the injector can be adjusted.

8. Injection time can be set.

9.  Protection function of short-circuit.

10. Precise measurement, easy operation, low noise.

11.Frequency converter inside to keep the RPM.

12. power voltage:220V 1phase.

13. flow measurement accuracy: 0.1ml.

14. temperature control range: 40+-2.


EPS100 common rail injector tester , pressure controlled automatically,

display the frequency and pluse at the screen.It can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO. Advanced technology,steady performance, precise measurement.Injector testing: leakage, injection oil quantity and back oil quantity(pre-injection,Idling, emissions, full load)

Functions of common rail injector test bench eps100:

1.Test injector brands: All Brands

2.Test 1 piece of injector

3.Test the Leakage performance of common rail injector.

4.Injection oil quantity and back oil quantity(pre-injection, idling, emissions, full load).

5.Electronic fuel delivery measuring, automatic testing and detection.

6.Data can be searched and saved.

Main parameter

1. output power  1.5KW

2. power voltage  220V 1phase.

3. motor speed  0-3000RPM

4. Oil pressure   0-2000bar

5.EPS100 common rail injector test benchh flow measure range    0-600ml/1000times

6. flow measurement accuracy  0.1ml
